不锈钢丝生产线包含直进式拉丝机，退火炉，冷却水池，倒立式收线机等。

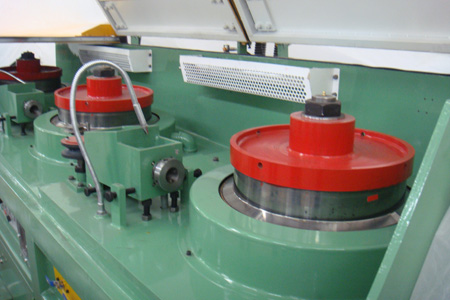

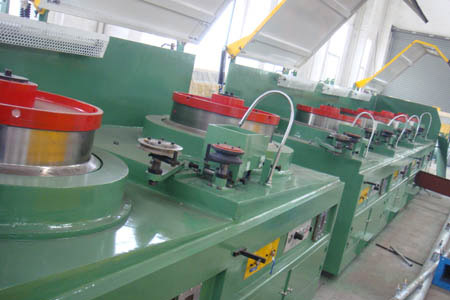

直进式拉丝机参数：
1) 上抽式放线架
2).LZ8/560直径是拉丝机
3). SC740工字轮收线机
4). 人机操作屏
5). 电控柜

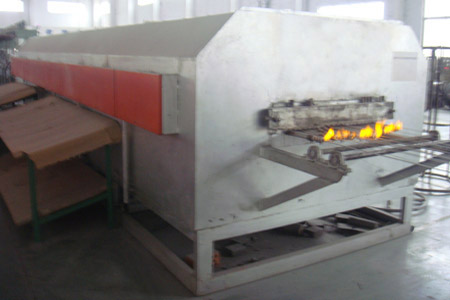

退火炉参数：
1) 在线连续退火，共20条（可根据客户要求调整），For the continuous anneal line, there are 20 pipes, and the annealing furnace tube is 33
2) Annealing temperature: 800-900℃
3) Annealing speed: 15m/min
4) The outside dimension L8000XW2030XH1720 (the distance from furnace tube to ground middle is 1000mm)
5) Inside structure: inside is firebrick, middle-side is high temperature resistant wool board, outside is transported brick, outermost layer is high temperature wool board, the width of furnace chamber is 1130mm ,height of chamber is 200mm .

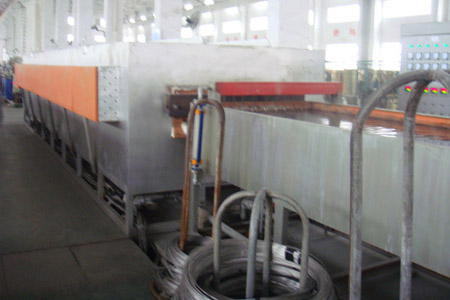

Cooling bath para:
1) Outside dimension: L6000XW1300XH 400 mm
2) Cooling tube material: 304 size dia33x3x 6000mm
3) Connection Type: threaded pipe, gas-distributing pipe is red copper tube; each tube has a flow meter
4) Furnace tube and trough (water tank tube) connected by sleeve (tube)

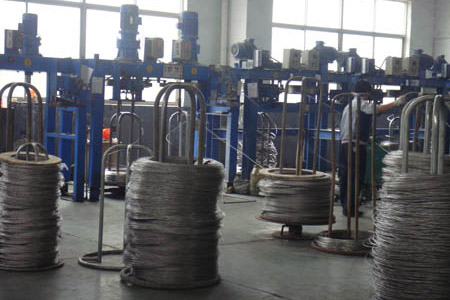

Vertical take-up para:
1). 0.75 KW cycloidal-pin wheel reduction box, the dia. of take-up coil (dia600 + dia400) two functions, 20 sets
2) Frequency converter is FUJI brand 0.75KW
3). coiling speed: 60m/min,
4). Each line controlled separate and pay-off parts can control start and stop machine same time.
5). Equipped 600 wire stands 20 pieces (1480x460)
6). Total height of take-up stand 2300mm, total width is 900mm total length is 10840mm
7). step-rack height is 270mmxwidth 1050mm
