  • Horizontal Wire Drawing Line

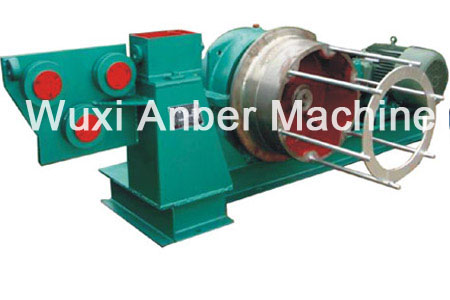

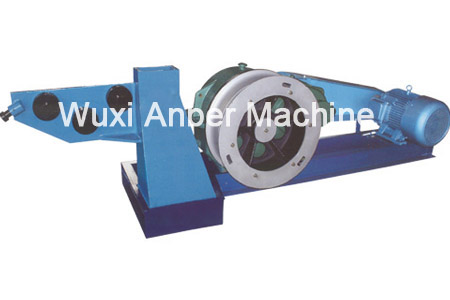

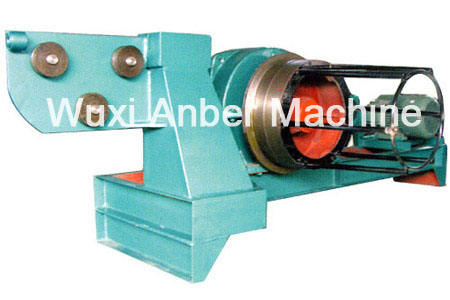

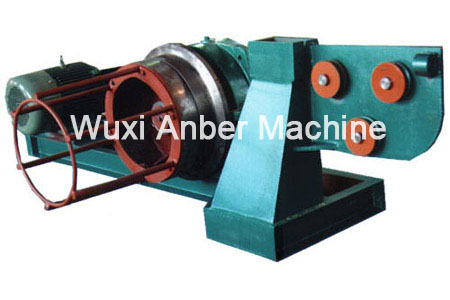

The drawing machine is used to draw high carbon wire, medium carbon wire and low carbon steel wire, it is easy to operate, the two capstans can draw the wire at the same time.
Capstan material: cast steel
Main parameter:
Model LWD350 LWD550 LWD650 LWD750 LWD850 LWD1000
Capstan dia. (mm) 350 550 650 750 850 1000
Max. inlet wire dia. (mm) 6.5 10 12 14 16 18
Speed (m/min) 25 25 30 20 20 20
Motor power (kw) 11 18.5 22 30 45 55
Reducer ZQ350 ZQ550 ZQ650 ZQ750 ZQ850 ZQ1000
Weight (kg) 850 1300 2300 2700 3500 5000

The Finished Products (Wire):
Copper Wire Coil Copper Wire
Low Carbon Wire Wire in coil
