Rolling Cassettes Plant

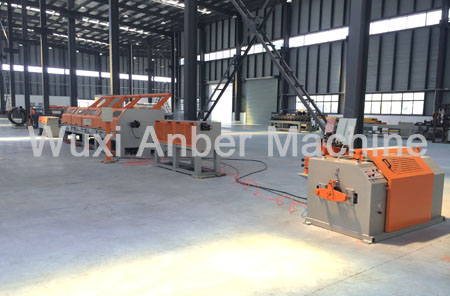

  • Rolling Cassettes plant

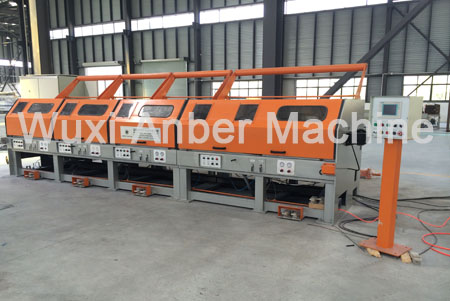

  • Rolling Cassettes

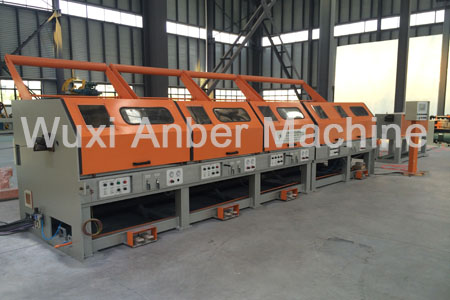

  • New type Rolling Cassettes plant

  • Spooler wire take-up

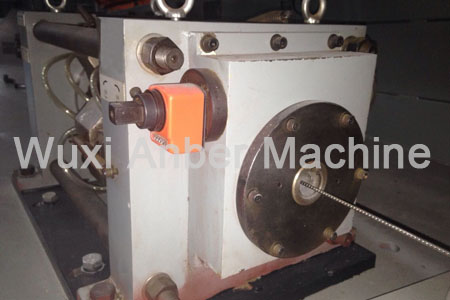

  • Rolling cassette

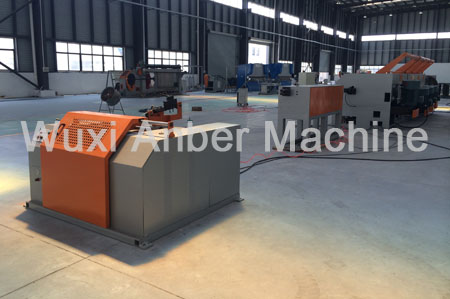

  • Cold rolling ribbed steel bar plant

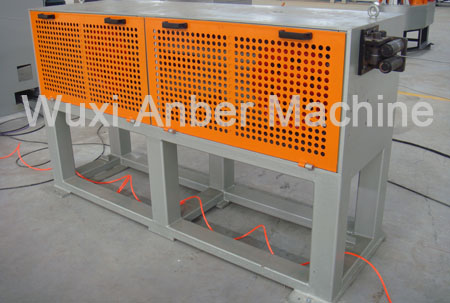

  • Cold rolling and ribbing machine

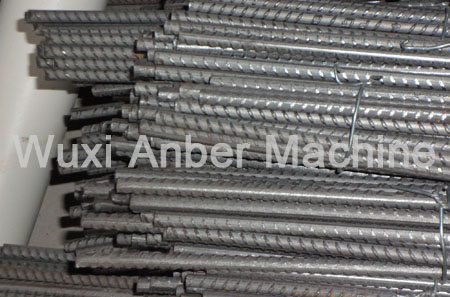

  • Cold rolled and ribbed bar

General description:
The rolling cassette plant equipped with carbide die (cassette) instead of fixed wire drawing die, it is installed upon the straight line wire drawing machine, the cassette matched with angular cutter gear and mump lubricate system, to produce the low carbon, middle carbon and high carbon steel wire, also can produce the copper, aluminum and titanium, it increased the drawing and rolling speed.
Technical parameter:
Capstan dia. : 600mm
Incoming wire dia.: 6.5mm, 6.0mm and 5.5mm
Outgoing wire dia.: 3.5-5mm
Total compressibility: 85%
Wire roller speed: 10m/s
Single motor power: 35 KW
Capstan number: according to the inlet wire diameter and outlet wire diameter
Gear description: Angular milling gear
Lubrication of gears and bearings: Oil pump compulsion lubrication
Related accessory machine:
Mechanical wire descaling machine, butt welding machine, wire pointing machine, SG800 spooler wire take-up, hydraulic wire pay-off
