wire drawing capstan

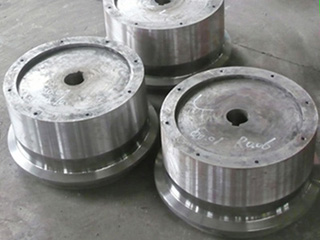

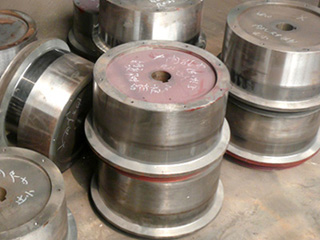

Wire Drawing cpastan Wire Drawing Block

Wire drawing capstan is the main part of the wire drawing machine, the wire is drawn from one capstan to next capstan. It is also called wire drawing block.

Material
Cold hard alloy cast iron
WC painted
Quenched steel
Overlaying weld
Capstan dia.
Φ200-Φ900mm
Φ200-Φ900mm
Φ200-Φ900mm
Φ200-Φ900mm
Hardness
HRC48-52
HRC60
HRC60
HRC55
Depth
≥5mm
≥0.8mm
Nitride 0.3mm, Carburizing 1.5mm, IF Quenching 2mm
≥5mm
Roughness
Grid um0.8
Grid um0.8
Grid um0.8
Grid um0.8
Concentricity
≤0.02
≤0.02
≤0.02
≤0.02
Service life
≥2 years
≥2 years
≥2 years
≥2 years
Application
All kinds of pulley type wire drawing machine, straight type wire drawing machine, traction of recoil and decoil, etc.
