Accessory Machine

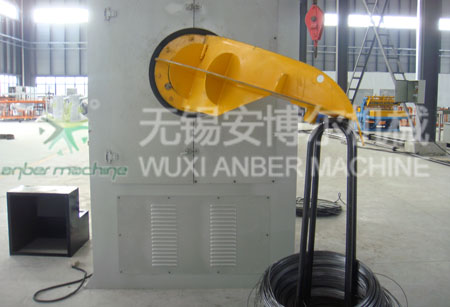

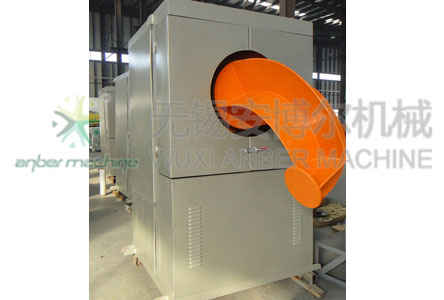

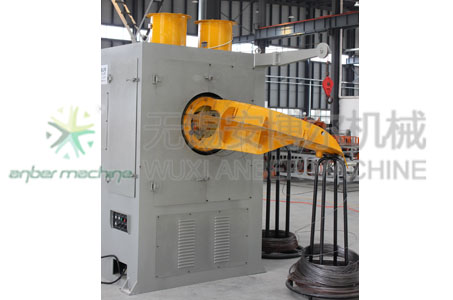

Dead Block Recoiler

  • Wire Recoiler

  • Dead block recoiler

  • Dead Block Recoiler

  • non-stop wire discharging machine

  • Spooler Take Up

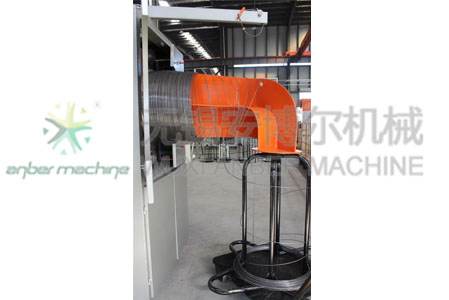

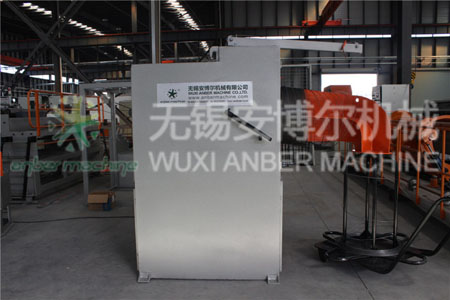

This wire discharging machine belongs to ordinary non-stop wire unloading machine which is equipped with a die box for making skin pass. The wire feeding device is lifted lower by a cylinder for easier wire set up. This machine is most idea for final process of screw wire.

Model ABE-560B ABE-600B ABE-700B
Coiling material Low carbon steel, mid carbon wire steel
Drawing capstan dia. 560mm 600mm 700mm
Wire dia. 1-3mm 1.5-4.5mm 3-8mm
Loading weight 1000kg 1000kg 1500kg
Motor power 15kw 18.5kw 22kw
Overall size 2070*1200*1950mm 2070*1200*1950mm 2170*1400*1950mm
Weight 1200kg 1500kg 1800kg
