Accessory Machine

Spooler Take Up / Spooler pay-off

  • 1250mm Spooler Take Up

  • Spooler type Wire Rewinder

  • Spooler type wire take-up

  • Wire Recoiler

  • Spooler Take Up

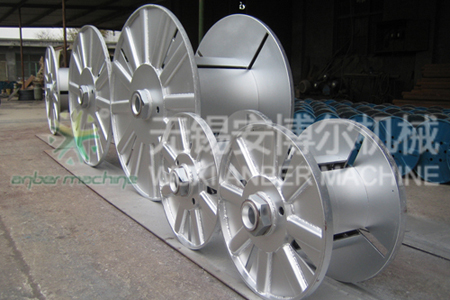

  • Spooler of the spooler take-up machine

Main Parameter:
Spooler take up is applied to all kinds of wire drawing machine, the wire coiled from the spooler take-up is alignment, no cross wire. The two model of ABE-DX400, ABE-DX600 are especially for the wire galvanizing line, others can be as both pay-off and take-up. Spooler pay-off is applied to all kinds of wire drawing machine too, to decoil the wire.
Model Wire Dia. (mm) Winding Speed (m/s) Spooler dia.
OD*ID*W (mm)
Motor power (kw) Size (mm) Weight
ABE-SG300/400 0.7-1.5 15 300-400 7.5 1300*960*828 760
ABE-SG400/600 2.5 8 400-600 11 900*1300*2050 847
ABE-SG500 1.5-3.5 7.5 630*355*400 11 1933*1282*1043 1404
ABE-SG630 2-4.8 8 500-630 18.5 2050*1450*1150 1800
ABE-SG730 0.6-2.2 15 730*380*480 11 2500*1770*1150 2500
ABE-SG800 0.8-3.0 20 800*400*500 11 2590*1770*1150 2540
ABE-SG1000 2-3.5 20 800-1000 22 2475*2050*1265 2640
ABE-SG1150 3-4 7.5 1000-1150 18.5 2400*1025*1065 3720
ABE-SG1250 5-7 10 1150-1250 37 1720*1400*1343 3720
ABE-SG1400 4-8 1.5-6 1400 22-45 2760-2100-1640 4700
ABE-SG1600 4-8 6 1600 75 3000*2500*1800 8200
ABE-DX400 0.9-2 0.17-1.0 400 7.5 12400*1900*1800 10000
ABE-DX600 2-5 0.05-0.5 600 13 15800*246*2300 17700
