Vertical Drop take-up

  • Galvanized wire recoiler

  • Galvanized wire winder

  • Galvanized wire take-up

  • Vertical_take-up

  • Galvanized wire winder

  • Galvanized wire take-up

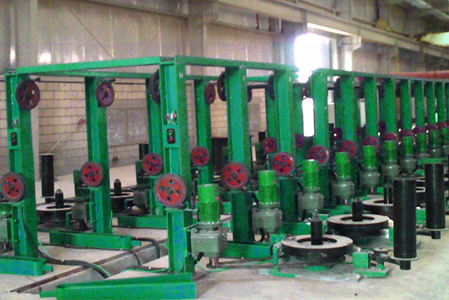

Vertical drop wire take-up has two kinds of recoiling: a. the recoiling wheel drive the wire drop frame rotating at the same time and add with a vertical drop take up system; b. the recoiling wheel and the wire drop frame rotating separately, and vertical drop the wire when the wire drop frame rotating itself. Normally we apply the first method because simple and low cost.
Vertical drop wire take-up contains the frame, above the frame, there is the first reducer, and under the frame there is the trolley, trolley panel has a degree with the ground at about 5-8, under the trolley panel, there is the second reducer.
Characteristic: better for the wire of heavy coil to continuous work, easy to operate, low labor cost, working on stable, large adjustment range and no random.

Model ABE-WF650 ABE-WF800
Wire dia. 0.8-1.6mm 1.6-3.5mm
Max. drawing cone diameter 650mm 800mm
Max. wire coiling speed 1500m/min 1500m/min
Spooler size inner 470mm, outer 836mm, height: 1480mm inner 580mm, outer 1060mm, height: 1620mm
Spooler capacity 1000kg/2000kg 1000kg/2000kg
Speed adjusted method Inverter or DC converter
Motor power of drop wire 15kw 22kw
Motor power of transfer wire coil 0.75kw 0.75kw
Compressed air pressure 0.40-0.60Mpa 0.50-0.70Mpa
Compressed air quantity 50L/M 50L/M
Capstan qty in a portal frame 16 or according to customer's requirement.
Capstan material Round steel with surface hardness treatment
MACHINE SIZE 2300*2900*12840mm 2500*3200*14840mm
